The Bitmain Antminer S23 Hyd 580Th is Bitmain’s latest high-performance water-cooled ASIC miner and is specifically optimized for mining BTC, BCH, BSV, and other SHA-256 cryptocurrencies. It provides a powerful hash rate of 580Th/s, a power consumption of only 5510W, and an energy efficiency of 9.5J/Th.

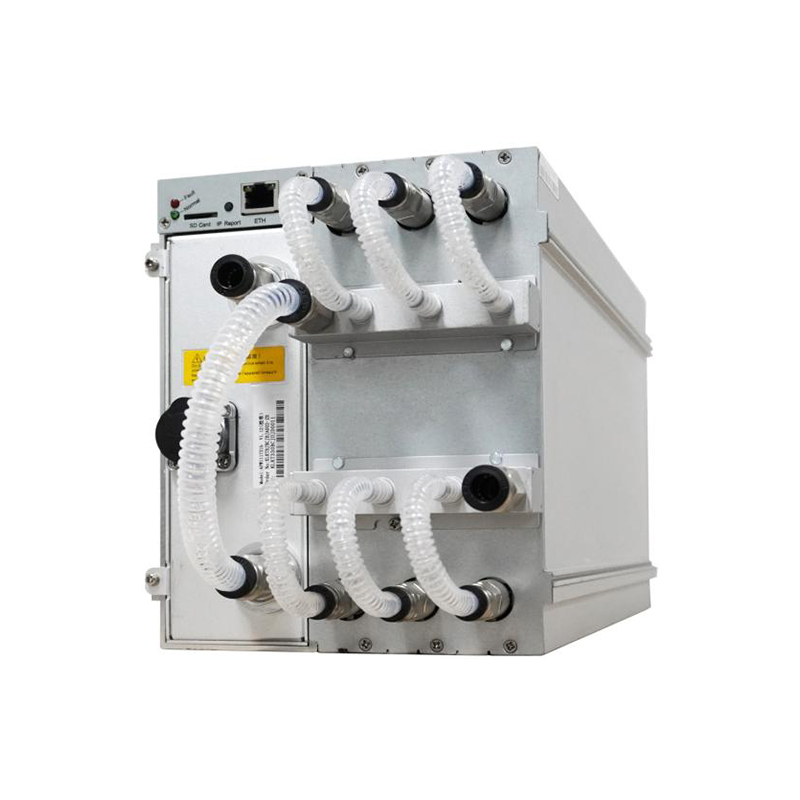

The Antminer S23 Hydro features a closed liquid cooling cycle design, where the water cooling plate directly contacts the ASIC chip, resulting in significantly improved heat exchange efficiency compared to air cooling. The operating noise is less than 65 decibels, equivalent to the sound of an indoor conversation, thereby addressing the pain point of noise pollution in mining farms.

Specifications:



Product Glance



Model



S23 Hyd.



Sub



580T



Version



10



Crypto algorithm/coins



SHA256 | BTC/BCH/BSV



Typical hashrate



580TH/s



Power on wall @35℃



5510W



Power efficiency on wall@35℃



9.5J/T



Power Supply



Phase



3



Input voltage



380~415V



Input frequency range



50~60Hz



Input max current



12A



Hardware Configuration



Networking connection mode



RJ45 Ethernet 10/100M



Server size (without package)



410x170x209mm



Server size (with package)



570x316x430mm



Net weight



13.5kg



Environment Requirements



Inlet coolant temperature



20~50℃



Coolant flow



8.0~10.0L/min



Coolant pressure



≤3.5bar



Working coolant



Antifreeze / Pure water / Deionized water



Coolant PH value



Antifreeze: 7.0~9.0

Pure water: 6.5~7.5

Deionized water：8.5~9.5



Diameter of coolant pipe connector



OD10mm



Storage temperature



-20~70℃



Operation humidity (non-condensing)



10~90%RH
