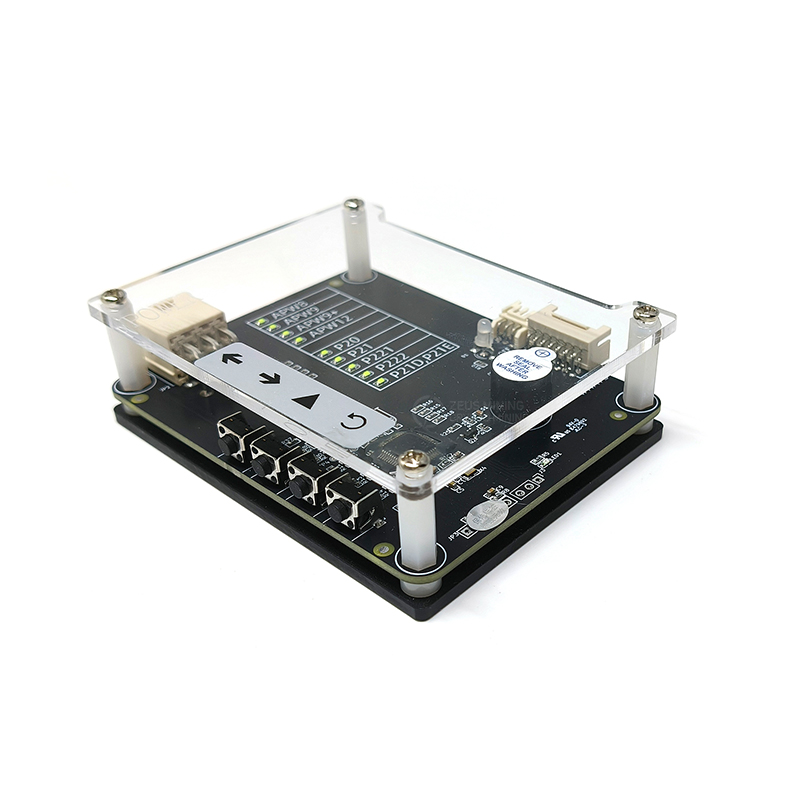

Antminer Whatsminer PSU wake up start up tester



This PSU tester is designed to detect whether the voltage output of the Antminer and Whatsminer power supplies is normal. With this instrument, you can independently perform output voltage tests and load tests on the power supply without connecting to the miner to determine whether the miner’s power supply is faulty. This greatly reduces the troubleshooting time and makes miner PSU fault detection more convenient and quick.



Test power supply models include:



Antminer: APW121215 a / b / c / d / e / f / g; APW121417 a / b; APW12, APW9, APW9+, APW8, etc.



Whatsminer: P222C, P221C, P21E, P21D, P21, P20.



Advantages of the test stand:



1) The power supply’s output voltage can be detected independently without connecting the miner, and the output voltage can determine whether the power supply is faulty.



2) The PSU test fixture indicator light can display the test results intuitively and quickly.



Instructions for use:



1. After the power supply test stand is powered on, press the “↓” button, select the power model downward, connect the power supply to be tested, and press the “▶” button to turn on the power.



2. After pressing the “▶” button, the indicator light next to the power test socket will turn green. Green means the PSU is powered on and there should be output now; Red means the PSU is powered off. If there is no output, please check the PSU model and whether it is normal.



3. Output voltage description: Antminer APW12, APW9, APW8 series power supplies have the highest output voltage of each model. The output voltage of the Whatsminer power supply is 12V.



Note: After testing the Whatsminer PSU, the power supply will be turned off after a 10-30 second delay after the output tester presses the shutdown button. Please pay attention to safety during the test
