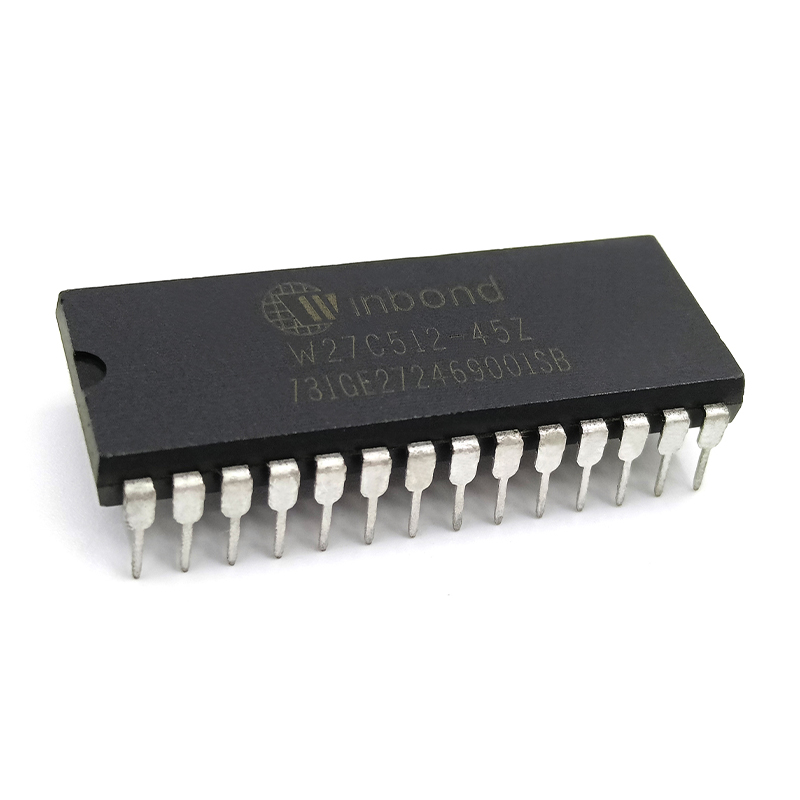

W27C512 64K*8bit Electrically Erasable EPROM

The W27C512-45Z is a high-speed, low-power electrically erasable and programmable read-only memory organized as 65536*8 bits that operate on a single 5-volt power supply. The W27C512-45 IC provides an electrical chip erase function. Fully static operation, three-state outputs, all inputs and outputs directly TTL/CMOS compatible.

Specification:



Access Time(ns): 45



Maximum operating current(mA): 30



Erase/Programming operating current(mA): 30



Standby current max. (μA): 10



Single 5V power supply



+14V erase/+12V programming voltage



Package: 600 mil DIP
